🔧 Tucson - Automatic Transmission Fluid Change

This procedure drains and refills the 6-speed automatic transmission, then sets the fluid level at the specified temperature. It replaces only the fluid that drains naturally; flushing is not required for routine service.

Assumption: Factory 6-speed automatic transmission with no fluid leaks or internal damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-2 hours

---

⚠️ Safety & Precautions

• 🌡️ Transmission fluid can cause burns. Let your Tucson cool before removing the drain plug.
• 🛡️ Wear safety glasses and nitrile gloves because fluid may splash as the plugs are removed.
• ⬆️ Keep your Tucson level while raised. An uneven vehicle produces an incorrect fluid level.
• 🚫 Never work beneath a vehicle supported only by a floor jack.
• ⚙️ The final level check requires the engine to run while your Tucson is raised. Keep hands, clothing, and tools away from rotating parts.
• 🧱 Apply the parking brake and chock the wheels before lifting.
• 🔋 Do not disconnect the battery. No transmission reset or battery registration is required for a routine drain and refill.
• 🧪 Use only Hyundai-approved ATF SP-IV. SP-III, Dexron, Mercon, CVT fluid, and “universal” fluids without explicit SP-IV approval are unsuitable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 2-ton minimum floor jack
• 2-ton minimum jack stands
• Wheel chocks
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm socket
• 17mm socket
• 24mm socket
• 10-80 Nm torque wrench
• Plastic trim-clip removal tool
• OBD-II scan tool with transmission-fluid-temperature data (specialty)
• ATF fluid-transfer pump with fill hose (specialty)
• 8-quart graduated drain pan
• 2-quart graduated measuring container
• Automotive funnel
• Brake-parts cleaner aerosol
• Lint-free shop towels
• Fuel-resistant nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Hyundai-approved ATF SP-IV - Qty: 6 US quarts
• Transmission drain-plug sealing washer - Qty: 1
• Transmission fill-plug sealing washer - Qty: 1
• Transmission level-plug sealing washer - Qty: 1

---

📋 Before You Begin

• 🚙 Drive your Tucson for approximately 10 minutes, then park on firm, level ground.
• 🅿️ Select Park, apply the parking brake, shut off the engine, and chock the wheels.
• 📱 No infotainment menu, transmission service mode, or battery-disconnect procedure is required.
• 🧰 Verify that the fill plug can be loosened before draining the transmission. This prevents being left with an empty transmission that cannot be refilled.
• 📏 The final level must be checked with the transmission fluid at 50-60°C (122-140°F), the engine idling, and your Tucson level.
• 💧 A normal drain usually removes roughly 4.5-5.5 US quarts, but the measured amount and final level check determine how much goes back in.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Level Your Tucson

• Position the 2-ton minimum floor jack at the approved front lifting point and raise your Tucson.
• Place 2-ton minimum jack stands beneath the approved support points, then raise the rear if necessary so the vehicle sits level.
• Confirm stability before going underneath. Keep the wheel chocks installed.
• Measure sill height to confirm the vehicle is level.

Step 2: Remove the Lower Splash Shield

• Use a 10mm socket, extension, and ratchet to remove the lower-engine-cover bolts.
• Use the plastic trim-clip removal tool to release any push clips.
• Lower the shield and arrange its fasteners in removal order.

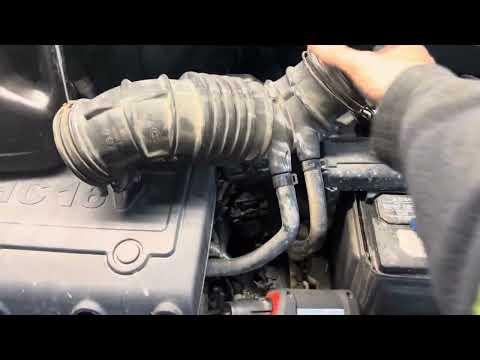

Step 3: Identify and Loosen the Fill Plug

• Locate the fill plug on the transmission case. Do not confuse it with an engine, transfer-case, or differential plug.
• Position the drain pan beneath the transmission in case a small amount escapes.
• Use a 17mm socket, extension, and ratchet to loosen the fill plug approximately one turn.
• Leave the plug installed until the transmission has been drained.
• Never drain fluid before confirming fill-plug access.

Step 4: Drain the Old Fluid

• Position the 8-quart graduated drain pan directly beneath the transmission drain plug.
• Use a 24mm socket and ratchet to remove the drain plug carefully.
• Allow the fluid to drain until it slows to an occasional drip.
• Inspect the fluid for a burned odor, metallic glitter, or excessive clutch material. A light gray paste on the magnetic plug is generally normal.
• Use brake-parts cleaner and lint-free shop towels to clean the drain plug and magnet.

Step 5: Measure the Drained Fluid

• Use the automotive funnel to transfer the drained fluid into the 2-quart graduated measuring container in batches.
• Record the total amount removed. This provides a safe initial refill quantity, but it does not replace the temperature-based level check.
• Take note of the old fluid’s appearance. Dark fluid alone does not prove transmission failure, but metallic particles or a strong burned odor justify professional diagnosis.

Step 6: Reinstall the Drain Plug

• Remove the old sealing washer and install a new transmission drain-plug sealing washer.
• Thread the drain plug into the case by hand to prevent cross-threading.
• Use the 24mm socket and torque wrench to tighten the drain plug to 35-45 Nm (26-33 ft-lbs).
• Use brake-parts cleaner and lint-free shop towels to clean the area so later leaks are easy to identify.

Step 7: Add the Initial Fluid Quantity

• Use the 17mm socket and ratchet to remove the loosened fill plug.
• Insert the ATF fluid-transfer pump hose securely into the fill opening.
• Use the ATF fluid-transfer pump to add Hyundai-approved ATF SP-IV.
• Initially add the same quantity that was measured during draining. Do not add the transmission’s total dry capacity.
• Install a new fill-plug sealing washer, thread the plug in by hand, and use the 17mm socket and torque wrench to tighten it to 30-35 Nm (22-26 ft-lbs).

Step 8: Connect the Temperature Scan Tool

• Connect the OBD-II scan tool to the diagnostic connector beneath the driver-side dashboard.
• Use the scan tool controls to select the automatic-transmission data list and display Transmission Fluid Temperature.
• An OBD-II scan tool is a handheld diagnostic device that reads live information from the vehicle’s computers.
• Do not substitute an infrared thermometer because transmission-case temperature is not the same as internal fluid temperature.

Step 9: Circulate the New Fluid

• Start the engine and keep your Tucson level with the parking brake firmly applied.
• Hold the brake pedal and move the selector slowly through Reverse, Neutral, Drive, and the manual ranges.
• Pause in each position for three seconds, then return the selector to Park.
• Repeat the sequence twice while monitoring transmission-fluid temperature with the OBD-II scan tool.
• Leave the engine idling for the remaining level-setting procedure.

Step 10: Set the Fluid Level

• Wait until the OBD-II scan tool shows 50-60°C (122-140°F).
• With the engine idling and the selector in Park, position the 8-quart graduated drain pan beneath the level plug.
• Use a 24mm socket and ratchet to remove the level plug carefully.
• If fluid exits in a thin, steady stream, allow it to reduce to a slow drip. The level is then correct.
• If no fluid exits, reinstall the level plug loosely, switch off the engine, and use the 17mm socket to remove the fill plug.
• Use the ATF fluid-transfer pump to add ATF SP-IV in 0.25-quart increments. Reinstall the fill plug before restarting the engine.
• Restart the engine, repeat the selector sequence, verify 50-60°C (122-140°F), and check the level again.
• Do not remove the fill plug while the engine is running.

Step 11: Tighten the Level Plug

• Once fluid exits as a slow drip, switch off the engine.
• Install a new transmission level-plug sealing washer and thread the plug in by hand.
• Use the 24mm socket and torque wrench to tighten the level plug to 35-45 Nm (26-33 ft-lbs).
• Use brake-parts cleaner and lint-free shop towels to clean all three plug areas.

Step 12: Reinstall the Splash Shield

• Position the lower splash shield against its mounting points.
• Use the plastic trim-clip removal tool by hand to reinstall the reusable push clips.
• Use the 10mm socket and ratchet to install the shield bolts snugly. Do not overtighten the plastic-mounted fasteners.

Step 13: Lower Your Tucson

• Use the 2-ton minimum floor jack to raise your Tucson slightly and remove the jack stands.
• Lower the vehicle slowly onto level ground and remove the wheel chocks.
• Use lint-free shop towels to clean any spilled fluid from the work area.

---

✅ After Repair

• ✅ Start the engine, hold the brake, and shift through every selector position. Engagement should be smooth and consistent.
• 🛣️ Take a gentle 10-15 minute test drive. Avoid hard acceleration while checking shift quality.
• 🔍 Park on clean, level ground and inspect the drain, fill, and level plugs for leakage.
• ⚠️ Stop driving if the transmission slips, delays engagement, makes unusual noises, or displays a warning light.
• 🧠 Do not reset transmission adaptive values after a routine fluid change unless directed by a specific diagnostic procedure.
• ♻️ Transfer the used fluid into sealed containers and take it to an automotive-fluid recycling facility. Never pour it onto the ground or into a drain.

---

💰 DIY vs Shop Cost

Shop Cost: ₹10,000-₹20,000 (parts + labor)

DIY Cost: ₹5,000-₹10,000 (parts only)

You Save: ₹5,000-₹10,000 by doing it yourself!

Local labor and imported-fluid prices vary. This repair takes a shop approximately 1-1.5 hours.

---
