🔧 Battery Replacement - Battery Replacement

Your Explorer uses a standard 12-volt battery replacement procedure. You’ll remove the old battery, transfer any hold-down hardware, and install the new battery with correct terminal order so the vehicle electronics stay safe.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the ignition off and remove the key/fob before starting.
• Wear safety glasses and gloves. Battery acid can burn skin and eyes.
• Do not smoke or create sparks near the battery.
• Disconnect the negative terminal first, then the positive terminal.
• Reconnect the positive terminal first, then the negative terminal.
• Make sure the battery is secured tightly after installation. A loose battery can move and damage cables.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• Extension
• Battery terminal cleaner
• Battery strap or lift handle
• Safety glasses
• Mechanic gloves
• Memory saver (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn all lights, fans, and accessories off.
• If you want to keep radio and memory settings, install a memory saver first. A memory saver is a small backup power device that keeps settings alive while the battery is disconnected.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and find the battery

• Release the hood latch and secure the hood with the prop rod.
• Locate the battery in the engine bay.

Step 2: Disconnect the negative terminal

• Use a 10mm socket and 1/4-inch ratchet to loosen the negative terminal clamp.
• Remove the negative cable and move it aside so it cannot touch the battery post.

Step 3: Disconnect the positive terminal

• Use the 10mm socket to loosen the positive terminal clamp.
• Remove the positive cable and keep it away from metal parts.

Step 4: Remove the battery hold-down

• Use the 10mm socket and extension to remove the battery hold-down hardware.
• Keep all bolts and brackets together so they are easy to reinstall.

Step 5: Lift out the old battery

• Use a battery strap or lift handle to remove the battery from the tray.
• Battery is heavy. Lift with your legs, not your back.

Step 6: Clean the battery tray and terminals

• Use a battery terminal cleaner to clean corrosion from the cable ends.
• Wipe the tray clean and make sure no debris is left behind.

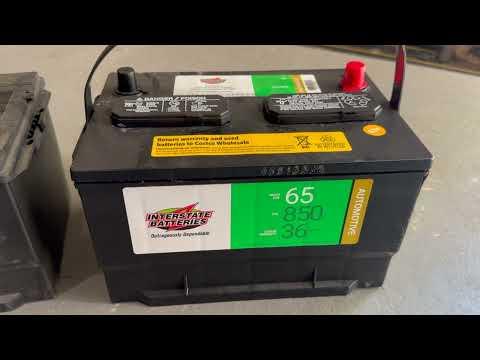

Step 7: Install the new battery

• Place the new battery into the tray in the same position as the old one.
• Reinstall the hold-down hardware with the 10mm socket.
• Torque to 8-10 Nm (71-89 in-lbs) if you are able to verify the fastener size and design on your battery clamp.

Step 8: Reconnect the terminals

• Install the positive cable first and tighten it with the 10mm socket.
• Install the negative cable last and tighten it with the 10mm socket.
• Torque to 5-7 Nm (44-62 in-lbs) for the terminal clamps.

Step 9: Protect the connections

• Spray a light coat of battery terminal protectant spray on both terminals.
• Make sure the cables are fully seated and cannot rotate by hand.

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• Check that warning lights clear after a short drive.
• Reset the clock and radio presets if needed.
• If the windows or steering wheel memory act up, cycle each feature once to relearn.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$250 (parts only)

You Save: $80-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
