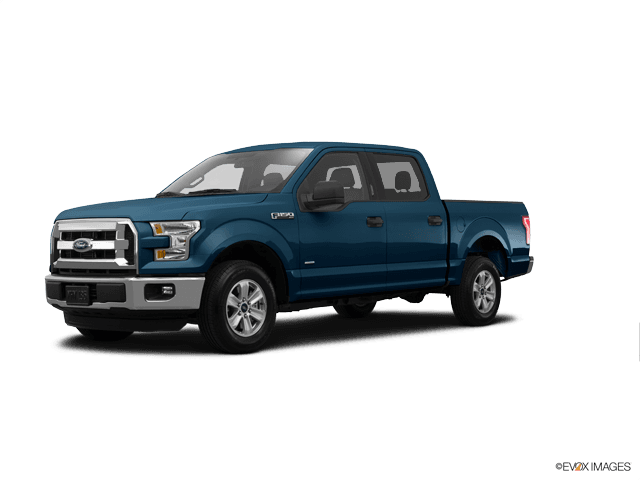

🔧 F-150 - Engine Air Filter Replacement

The engine air filter traps dust before it enters your F-150’s 5.0L engine. Replacement requires opening the passenger-side air cleaner housing, cleaning the housing, and installing the new filter with its seal fully seated.

Difficulty Level: Beginner | Estimated Time: 10-15 minutes

---

⚠️ Safety & Precautions

• ⚠️ Turn off the engine and allow hot engine-bay components to cool.
• 🛑 Keep dirt and tools out of the exposed engine-air outlet.
• 🔋 Battery disconnection is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Shop vacuum with 25mm crevice nozzle
• LED work light
• Nitrile work gloves
• ANSI Z87.1 safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 5.0L engine air filter - Qty: 1

---

📋 Before You Begin

• 🚙 Park your F-150 on level ground, select Park, and engage the parking brake.
• 🗝️ Switch the ignition completely off and remove the key from the work area.
• 💡 Open the hood and use the LED work light to locate the black air cleaner housing on the passenger side of the engine compartment.
• 📱 No infotainment setting, scan tool, programming, or service reset is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Release the air cleaner housing

• Use the LED work light to inspect the housing and confirm that no loose debris is sitting around its edges.
• Use your gloved fingers to release each metal retaining clip around the housing lid.
• No screwdriver is needed; forcing the clips with a tool can damage the plastic housing.

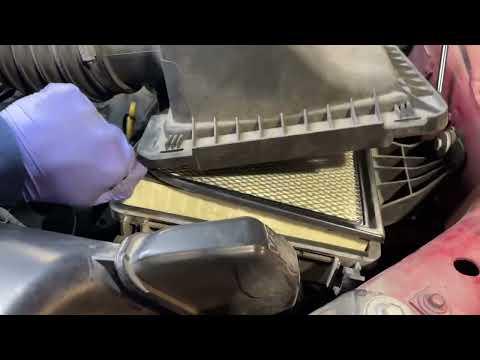

Step 2: Lift the housing lid

• Use both gloved hands to lift the clip side of the lid.
• Disengage the lid from the locating tabs on the opposite side without pulling on the attached intake tube.
• Move the lid only far enough to access the filter. Sensor or hose disconnection is not required.
• Do not strain the intake tube.

Step 3: Remove the old filter

• Use your gloved hands to note the filter’s orientation, then lift it straight out.
• Inspect the old filter for heavy dirt, oil, water, or animal nesting material.
• Do not shake loose dirt toward the clean-air outlet leading to the engine.

Step 4: Clean and inspect the housing

• Use the shop vacuum with 25mm crevice nozzle to remove debris from the bottom of the housing.
• Use the LED work light to inspect the housing, drain area, lid tabs, and sealing groove for damage.
• Keep the vacuum nozzle away from the clean-air outlet and any sensor components.
• Never blow dirt out with compressed air.

Step 5: Install the new air filter

• Use clean, gloved hands to place the new 5.0L engine air filter into the lower housing in the same orientation as the original.
• Use the LED work light to verify that the filter’s rubber perimeter seal sits flat and evenly inside the sealing groove.
• Do not apply oil, grease, or sealant to the filter.

Step 6: Close the housing

• Use both gloved hands to engage the housing lid’s locating tabs first.
• Lower the lid while checking that the filter seal does not shift or become pinched.
• Use your gloved fingers to secure every metal retaining clip.
• No torque specification applies because this housing uses hand-operated clips rather than threaded fasteners.

Step 7: Perform a final inspection

• Use the LED work light to inspect the full housing seam for gaps.
• Use both gloved hands to gently check that the lid and intake tube are secure.
• Remove the shop vacuum, LED work light, old filter, and all other items before closing the hood.

---

✅ After Repair

• ✅ Start the engine and let it idle for approximately one minute.
• 👂 Listen near the air cleaner housing for unusual hissing, which can indicate an unseated lid or filter seal.
• 🚨 If a warning light appears, turn off the engine and recheck the housing and intake connections.
• 📅 Ford’s normal maintenance schedule calls for engine air-filter replacement at approximately 30,000 miles; inspect it more often in dusty conditions.
• 🔄 No electronic reset or filter programming is required.

---

💰 DIY vs Shop Cost

Shop Cost: $65-$120 (parts + labor)

DIY Cost: $20-$40 (parts only)

You Save: $25-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.5 hours.

---
